Footprint

NOTICE

Incorrect positioning of the printer can cause damage to the printer and/or to the printed models. Please follow the positioning guidelines.

Printer: 90 kg (198.42 lb).

Dimensions: 90 x 60 x 152 cm (35.43 x 23.62 x 59.84 in).

The printer must be installed on a sturdy surface that can comfortably hold over 90 kg (198.42 lb).

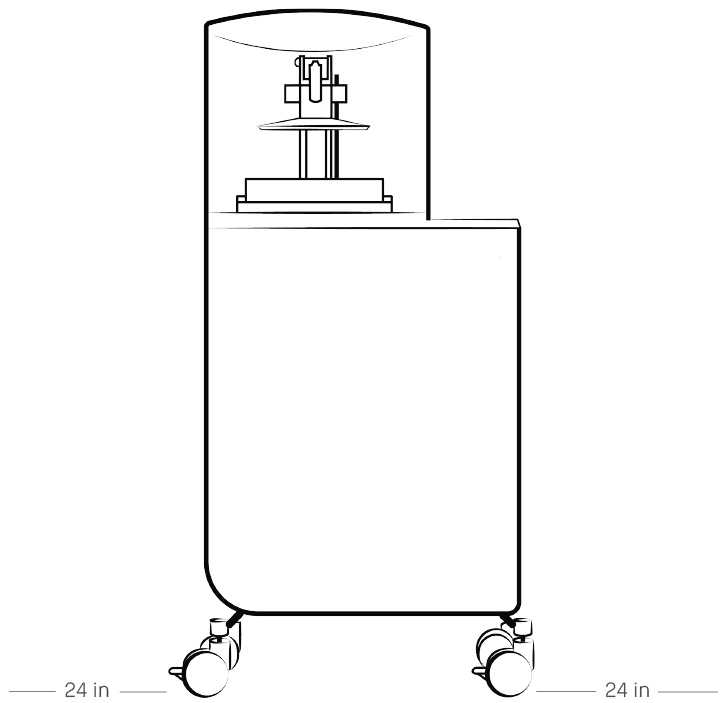

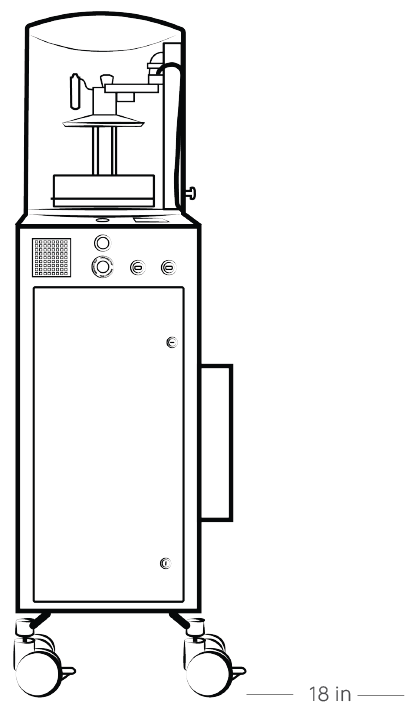

The printer requires a minimum amount of space for operation, maintenance, and heat dissipation:

  • A minimum of 46 cm (18 in) behind the printer.
  • A minimum of 61 cm (24 in) on the right side of the printer.
  • A minimum of 61 cm (24 in) on the left side of the printer.
