Cut Model

Cutting a model by plane allows you to lower the model.

Note: It is only possible to cut a model if it has more than one layer.

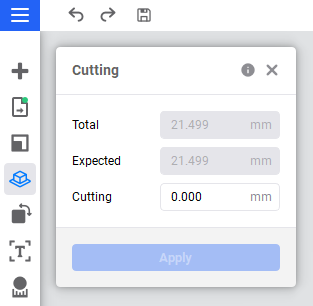

1. Hover over the model and press the icon while holding down the mouse button.

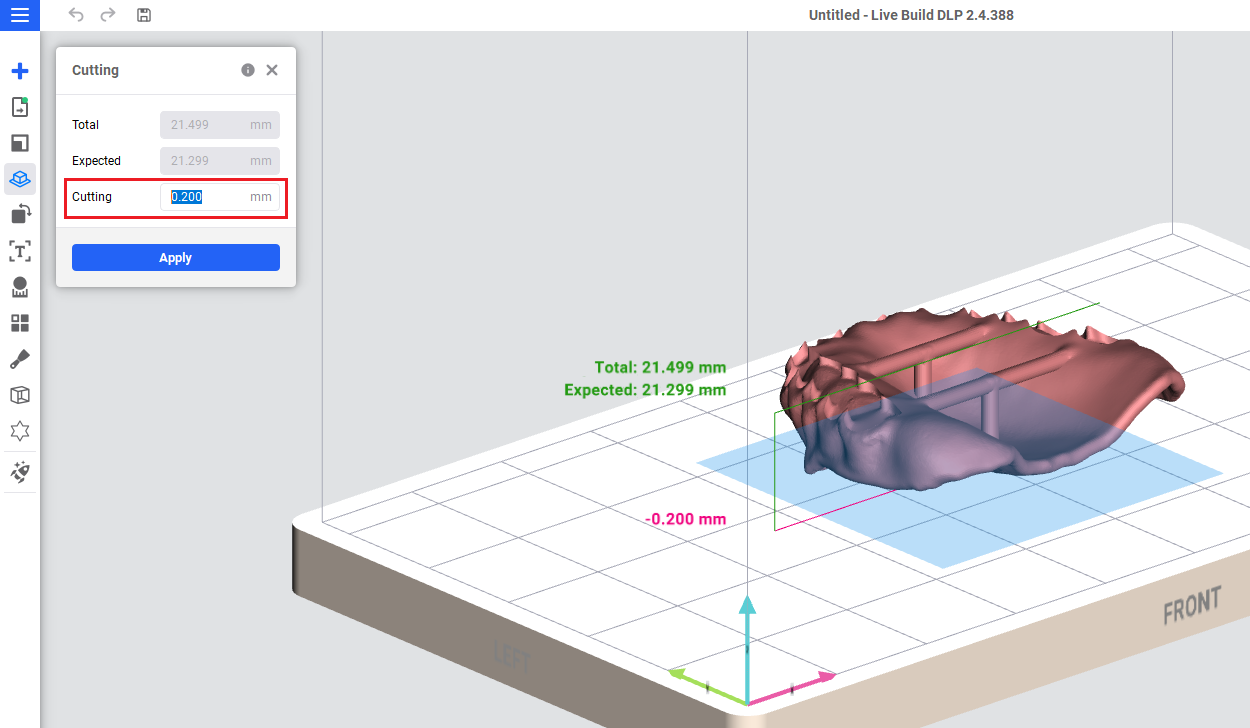

2. Drag the icon up and down to cut the selected model by plane.

Tip: When you drag the icon, the current and total height of the model are displayed.

3. Release the mouse button.

Important: The supports are automatically deleted after the model has been cut.
